Outdoor Steel Armored Double Sheath

The two layer sheath provides good crush resistance performance, as well as the good mechanical and temperature performance. It performs excellent water resistance and moisture resistance especially in the direct buried application or conduit cabling.

Share
Categories: ,

Open more information (click on the “+” sign below)

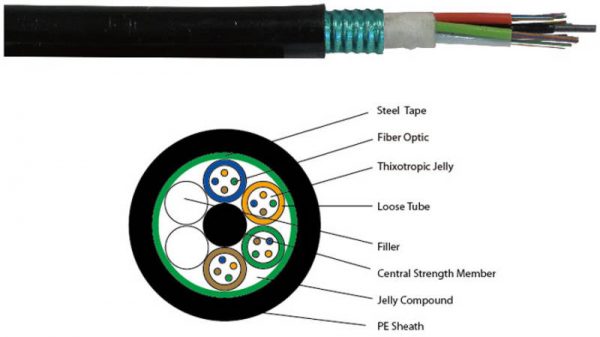

Structure & Environmental Characteristics

Loose Tube Material PBT
Peripheral Strength Member Material Steel Wire
Diameter Nom. 2.0 mm
Reinforcement Material Corrugated Steel Tape
Wrapping Material Aluminium/Corrugated Steel Tape
Sheath Material PE / Black
Operating Temperature -40°C to +70°C
Storage / Transport Temperature -40°C to +70°C

Mechanical Characteristics

Fiber
Count		 Outside
Diameter
(mm)		 Cable
Weight
(kg/km)		 Tensile Load Crush Load Bend Radius
Short Term
(N)		 Long Term
(N)		 Long Term
(N)		 Static
(mm)		 Static
(mm)		 Dynamic
(mm)
4 12.8 189 3000 1000 3000 1000 12.5D 25D
8 12.8 189 3000 1000 3000 1000 12.5D 25D
12 12.8 189 3000 1000 3000 1000 12.5D 25D
24 12.8 189 3000 1000 3000 1000 12.5D 25D
72 14 221 3000 1000 3000 1000 12.5D 25D
144 18.6 343 3000 1000 3000 1000 12.5D 25D

Compliant Standard:ITU-T G651 / ITU-T G652 D, ANSI/TIA B.3, IEC-794.

Outdoor Steel Armored Double Sheath Multi-tube Fiber Optic Cable

Number of Fibers 9/125 50/125 62.5/125 50/125(OM3) 50/125(OM4)
4 266223004 266233004 266213004 266243004 266293004
8 266223008 266233008 266213008 266243008 266293008
12 266223012 266233012 266213012 266243012 266293012
24 266223024 266233024 266213024 266243024 266293024
72 266223072 266233072 266213072 266243072 266293072
144 266223144 266233144 266213144 266243144 266293144
