MATERIAL:
- Frame: SPCC cold rolled steel
- others: SPCC cold rolled steel
- Thickness: Frame and mounting vertical rail: 2.0mm, Horizontal bracket: 2.0mm, Side door: 1.2mm, others: 1.5mm
STRUCTURE:
| S/N | Name | QTY |

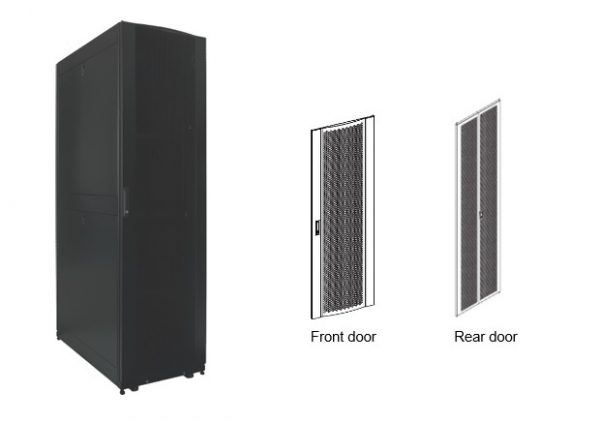

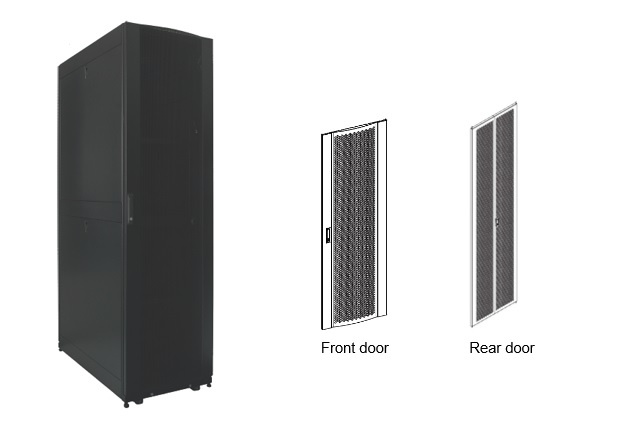

| 1 | Front vented door with single lock | 1 |
| 2 | Rear door | 2 |
| 3 | Top cover | 1 |
| 4 | Side panel | 4 |
| 5 | Vertical rail | 4 |
| 6 | Horizontal beam | 6 |
| 7 | Cable management rail | 2 |
| 8 | Door frame | 2 |
| 9 | Levelling feet | 4 |
| 10 | 2″ heavy duty caster(without brake) | 4 |
ORDERING INFORMATION:
| Part NO. | Capacity | Width | Depth | Height | Packing Dimension |
| (U) | (mm) | (mm) | (mm) | W*D*H (cm) | |
| 615888422 | 42 | 800 | 800 | 1992 | 850*950*2150 |
| 615881422 | 42 | 800 | 1070 | 1992 | 850*1150*2150 |
| 615883422 | 42 | 800 | 1200 | 1992 | 850*1350*2150 |
| 615888482 | 48 | 800 | 800 | 2259 | 850*950*2350 |
| 615881482 | 48 | 800 | 1070 | 2259 | 850*1150*2350 |
| 615883482 | 48 | 800 | 1200 | 2259 | 850*1350*2350 |
| Part NO. | Capacity | Width | Depth | Height | Packing Dimension |
| (U) | (mm) | (mm) | (mm) | W*D*H (cm) | |
| 615868422 | 42 | 600 | 800 | 1992 | 650*950*2150 |
| 615861422 | 42 | 600 | 1070 | 1992 | 650*1150*2150 |
| 615863422 | 42 | 600 | 1200 | 1992 | 650*1350*2150 |
| 615868482 | 48 | 600 | 800 | 2259 | 650*950*2350 |
| 615861482 | 48 | 600 | 1070 | 2259 | 650*1150*2350 |
| 615863482 | 48 | 600 | 1200 | 2259 | 650*1350*2350 |
FAN PANEL: (Optional, Order with Individual Part No.)
| Part No. | Description |
| 62001×602 | Fan tray, 6 fans, German line (cable length 2M)
x=8: for 800mm depth; 1: for 1070mm depth; 3: for 1200mm depth |
| 62002×602 | Fan tray, 6 fans, UK line (cable length 2M)
x=8: for 800mm depth; 1: for 1070mm depth; 3: for 1200mm depth |
| 62003×602 | Fan tray, 6 fans, US line (cable length 2M)
x=8: for 800mm depth; 1: for 1070mm depth; 3: for 1200mm depth |
