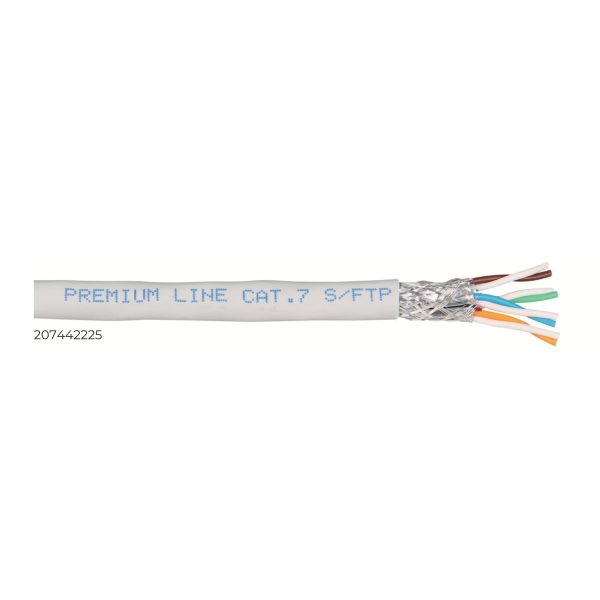

Cable Cat. 7 S/FTP

Đơn Giá/… Cuộn

(Category 7 S/FTP Installation Cable, 1000Mhz, LSOH)

Standards:

  • ISO/IEC 11801-1:2017
  • CENELEC EN 50288-4-1:2013
  • IEC 61156-5:2012((Edition 2.0))
  • CENELEC EN 50173-1:2018
  • IEC 60332-1-2:2004
  • IEC 60332-3-24:2009 (can be supplied according to the requirements)
  • IEC 61034-1 / 61034-2:2013
  • IEC 60754-2:2011(Edition 2.0)
  • RoHS compliant (EU Directive 2011/65/EC)

Application:

  • 10G BASE-T Ethernet
  • 1000BASE-TX (Gigabit Ethernet)
  • 1000BASE-T (Gigabit Ethernet)
  • 100BASE-TX Fast Ethernet
  • 10BASE-T Ethernet
  • Voice
Share
Categories: ,

CONFIGURATION:

Conductor Material Bare Copper
Construction 23 AWG
Insulation Material Foam-Skin PE
Diameter 1.38 ± 0.05 mm
Inner-Shield Aluminum-Mylar An aluminum foil screen around each pair
Braid Material Tinned Copper
Sheath Material LSOH
Diameter 7.8 ± 0.2 mm



ORDERING INFORMATION:

Part NO.                                   207442x2y

Description                             Cat.7 S/FTP installation cable, LSOH

x, length                                  2: 500m     3: 1000m

y, color                                    5: grey      0: orange



Mã. Mô Tả KT Đóng Hói
207442225 Category 7 S/FTP Installation Cable, 1000MHz, LSOH, Grey, 500m/reel 45(O.D)×29.8(H) cm



Open more information (click on the “+” sign below)

Bending Radius ≥ 6D, without load
≥ 8D, with load
Operation Temperature -20 °C ~+60°C
Installation Temperature 0°C ~+50°C
Storage Temperature -30 °C ~+60°C
Freq Insertion Loss NEXT PS NEXT ACR-F PS ACR-F Return Loss
(MHz) (dB) (dB/100m) (dB) (dB) (dB) (dB)
Nor. Typ. Nor. Typ. Nor. Typ. Nor. Typ. Nor. Typ. Nor. Typ.
1.0 2.1 1.7 74.3 100.0 72.3 97.0 67.8 90.0 64.8 87.0 20.0 30.0
4.0 3.8 3.4 65.3 100.0 63.3 97.0 55.8 90.0 52.8 87.0 23.0 33.0
10.0 5.9 5.0 59.3 100.0 57.3 97.0 47.8 90.0 44.8 87.0 25.0 35.0
16.0 7.5 6.4 56.2 100.0 54.2 97.0 43.7 90.0 40.7 87.0 25.0 35.0
20.0 8.4 7.1 54.8 100.0 52.8 97.0 41.8 90.0 38.8 87.0 25.0 35.0
31.25 10.5 9.0 51.9 100.0 49.9 97.0 37.9 90.0 34.9 87.0 23.6 33.6
62.5 15.0 13.0 47.4 100.0 45.4 97.0 31.9 85.0 28.9 82.0 21.5 31.5
100.0 19.1 16.8 44.3 98.0 42.3 95.0 27.8 81.0 24.8 78.0 20.1 30.1
200.0 27.6 23.9 39.8 93.0 37.8 90.0 21.8 77.0 18.8 74.0 18.0 28.0
250.0 31.1 28.5 39.3 92.1 36.3 89.1 19.8 76.0 16.8 73.0 17.3 27.3
300.0 34.3 29.2 37.1 91.0 35.1 88.0 18.3 71.0 15.3 68.0 16.8 27.3
400.0 40.1 33.4 35.3 89.1 33.3 86.1 15.8 68.1 12.8 65.1 15.9 27.3
550.0 47.6 37.2 33.2 87.3 31.2 84.3 13.0 66.2 10.0 63.1 14.9 27.3
600.0 50.0 42.6 32.7 86.1 30.7 83.1 12.3 60.0 9.3 57.0 14.6 27.3
800.0 58.7 48.2 30.8 83.1 28.8 80.1 9.8 52.1 6.8 49.1 13.7 27.3
900.0 62.7 53.8 30.0 82.0 28.0 79.0 8.8 48.0 5.8 45.0 13.4 25.0
1000.0 66.6 57.5 29.3 81.0 27.3 78.0 7.8 46.0 4.8 43.0 13.1 24.0
